Settimino was tested (V1.1.0) with these
Arduino™ original shields:

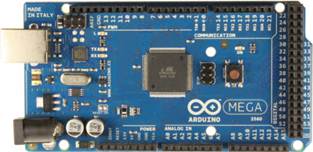

· ARDUINO UNO R3
· ARDUINO MEGA 2560 R3
both equipped with
· ARDUINO Ethernet Shield R3
It should
be compatible with other Arduino boards using a fully compatible Ethernet
library that exposes the EthernetClient
object.
Test
reporting are welcomed…
NodeMCU ESP12-E V1.0 – 8266 Based
|
|
EspressIF ESP32-DevKitC – (ESP32 Based)
V2.0.0
M5Stack Core –
using internal WIFI (ESP32 Based) V2.0.0
M5Stack Core –

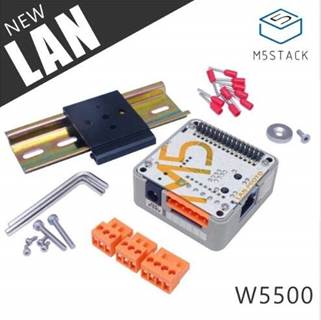

using LAN base (ESP32 Based) V2.0.0
Example M5StackSentron with M5Stack+LAN/WIFI
|
|
|
|
Values are acquired by PLC from a Energy meter unit without display, then are displayed to
a M5Stack.
By pressing the buttons (or by time cyclically)
is possible to switch the page.
Settimino PLC functions compatibility list
|
|
CPU |
||||||
|
|
300 |
400 |
WinAC |
1200 |
1500 |
LOGO |
S7200 |
|
DB Read/Write |
O |
O |
O |
O(1) |
O(1) |
O(2) |
O(2) |
|
EB Read/Write |
O |
O |
O |
O |
O |
||
|
AB Read/Write |
O |
O |
O |
O |
O |
||
|
MK Read/Write |
O |
O |
O |
O |
O |
||
|
TM Read/Write |
O |
O |
O |
- |
- |
- |
- |
|
CT Read/Write |
O |
O |
O |
- |
- |
- |
- |
|
Get DB Size |
O |
O |
O |
- |
- |
- |
- |
|
DB Get |
O |
O |
O |
- |
- |
- |
- |
|
Control Run/Stop |
O |
O |
O |
- |
- |
- |
- |
(1) See S71200/1500 Notes
(2) The entire memory is mapped in the V Area accessible as DB 1 from the outside.
